ReSET: Accurate Latency-Critical NVFP4 Reasoning
via Step-Aware Temperature Scaling

The first CUDA-core NVFP4 (W4A4) inference framework — built for low-batch, long-decode reasoning on Blackwell.

Sihwa Lee¹^* Janghwan Lee¹^* Donghoon Yoo² Jae Gon Kim² Hanyul Ryu² Soojung Ryu² Jungwook Choi¹^†

¹Hanyang University ²Xenoscube Korea Inc.
* Equal contribution † Corresponding author

Paper (arXiv) Code NVFP4 Framework

2.5×

kernel-level decode speedup
vs. vLLM's state-of-the-art production NVFP4 (CUTLASS)

~2×

end-to-end decoding speedup
vs. BF16, small-batch long decode

+~2 pts

reasoning accuracy over the NVFP4 baseline
ReSET, no extra forward passes

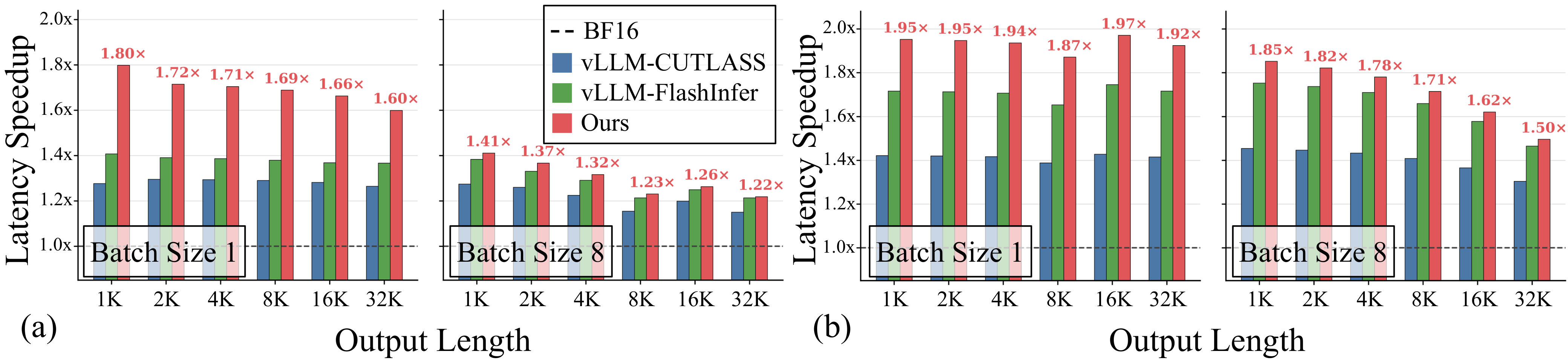

End-to-end decode speedup over BF16 vs vLLM-CUTLASS and vLLM-FlashInfer, Qwen3-8B and 32B, batch 1 and 8 — **Faster than the best production NVFP4 path on Blackwell.** vLLM's CUTLASS and FlashInfer NVFP4 backends are the **state-of-the-art production way to serve NVFP4** on Blackwell's Tensor Cores — yet with a CUDA-core small-M kernel, `nvfp4r` (**Ours**) decodes **faster than both** across output lengths, for Qwen3-8B (a) and 32B (b) at batch 1 and 8. Up to **1.95×** over BF16 on Qwen3-32B.

See it decode

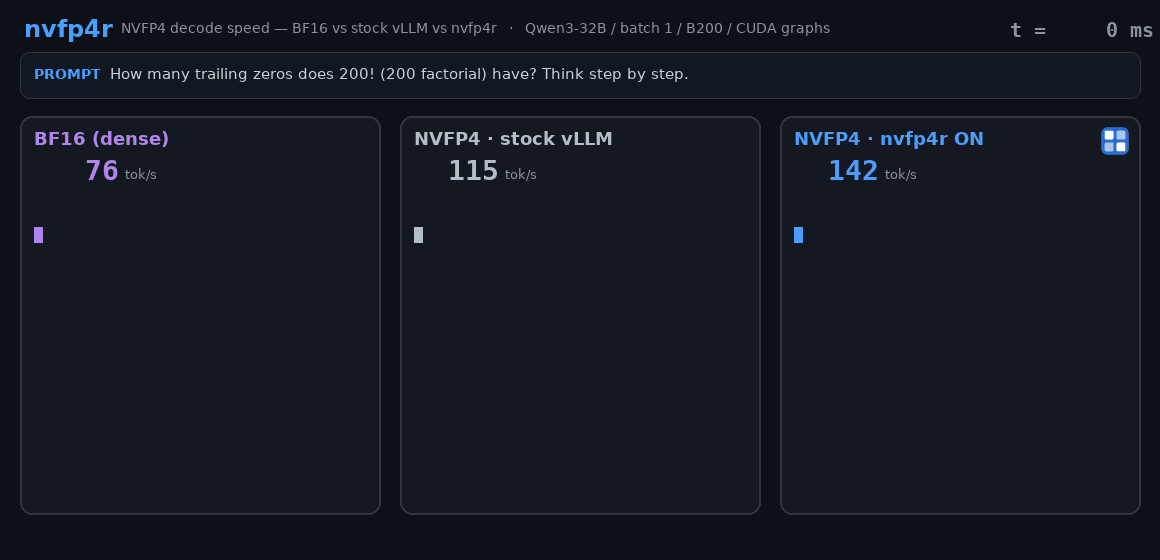

Decode speed: BF16 vs vLLM NVFP4 (CUTLASS) vs nvfp4r, Qwen3-32B on B200 — A full **1,500-token reasoning trace** on the same prompt, decoded three ways on one B200 (Qwen3-32B, batch 1, CUDA graphs): BF16, vLLM's default NVFP4 (CUTLASS Tensor-Core, the production state-of-the-art), and the `nvfp4r` backend. Recorded token rates, played back slowed down. The per-token win **compounds across the long decode**: `nvfp4r` finishes the trace in **10.5 s** vs BF16's **19.6 s** — **1.86×** over BF16 and **1.24×** over vLLM's NVFP4 end-to-end, with the per-kernel GEMV gap reaching **2.5×** (table below).

Overview

nvfp4r is, to our knowledge, the first CUDA-core NVFP4 (W4A4) kernel for latency-critical small-batch decoding on Blackwell, delivering up to 2.5× faster decode GEMV than vLLM's state-of-the-art production NVFP4 (Tensor-Core CUTLASS) path and approximately 2× end-to-end speedup over BF16. ReSET, a step-aware temperature-scaling policy, closes the accuracy gap NVFP4 opens (up to ~2 points) with no extra forward passes — together making low-precision reasoning both fast and accurate.

Why a CUDA-core NVFP4 kernel?

Latency-critical long reasoning runs at low batch. Large reasoning models emit thousands of tokens per query — DeepSeek-R1 averages ~12K tokens on an AIME problem, up to 64K. Per-token decode latency, not aggregate throughput, sets the serving SLO, which confines feasible operation to small batch (M ≤ 8 active tokens) across thousands of sequential decode steps — even on a datacenter GPU like the B200.

At low batch the NVFP4 Tensor-Core advantage collapses — and NVFP4 has the most to lose. Its headline 4× peak throughput over BF16 is only realized at compute-bound batch sizes. Blackwell's NVFP4 GEMM path uses tcgen05.mma, whose tile is fixed at 128 rows along the token dimension: at small M the activation is padded to 128 rows and only M do useful work — 6.25% of the tile at M=8, 3.13% at M=4, and at single-token decode (M=1) just 1 of the 128 rows — under 1% by construction. That is a near-total collapse of exactly the peak-throughput advantage NVFP4 was deployed for. Throughput stacks hide this with batch sizes in the thousands; in the latency-critical regime it is the whole problem.

Every existing high-performance NVFP4 kernel is Tensor-Core-centric. vLLM, CUTLASS, FlashInfer, MR-GPTQ, etc. all dispatch decode projections to tcgen05.mma — so they all share the same small-M collapse, and none targets the CUDA-core small-M regime. But decode is memory-bandwidth bound — the win comes from moving 4× fewer weight bytes, not from tensor-core math — so the right kernel exposes M at the thread level on the CUDA cores, not through a fixed tensor-core tile. That kernel did not exist. nvfp4r is, to our knowledge, the first.

Core contribution — the `nvfp4r` CUDA-core kernel

A decode-specialized NVFP4 kernel is what turns the format's 4× weight-bandwidth saving into real small-batch latency — the speedup every Tensor-Core stack leaves on the table.

To our knowledge the first CUDA-core NVFP4 (W4A4) inference framework, built around a CUDA-core small-M GEMV kernel for latency-critical decoding on Blackwell and shipped as a drop-in vLLM kernel backend. Instead of fighting the fixed 128-row Tensor-Core tile, nvfp4r computes the projection Y=XW at small M on the CUDA cores, exposing M at the thread level. Three design choices make it efficient:

C1 · Multi-token CTA fusion. Group the active decode tokens into one thread block, so each HBM-streamed weight tile is loaded once and reused across all tokens — without inflating M to the 128-row tile.

C2 · Multi-accumulator threading. Assign multiple output rows per thread, creating independent accumulator chains the warp scheduler interleaves — exposing instruction-level parallelism even when M is small.

C3 · Register-only dequantization. Keep unpacked FP16 values in registers and feed them straight into half2 FMAs — no shared-memory staging, no inner-K-loop synchronization; load, FP4-unpack, scale, and accumulate overlap across K tiles.

The kernel dispatches to a Tensor-Core path for prefill and large-M. It dequantizes NVFP4 to FP16 and uses half2 FMAs rather than native FP4 arithmetic, but by matching the decode shape it reaches up to 2.5× lower projection latency than the NVFP4 Tensor-Core baseline. Registered as torch.ops.nvfp4r.* and swapped in as a drop-in vLLM kernel backend for NVFP4 linears (sm_100a, CUDA 12.8+).

Use it as a framework — three lines, no model surgery:

# pip install -e kernels/   (Blackwell sm_100a, CUDA 12.8+)
import nvfp4r
nvfp4r.enable()                 # route every NVFP4 linear through nvfp4r
llm = LLM("Qwen3-32B-nvfp4", quantization="modelopt_fp4")

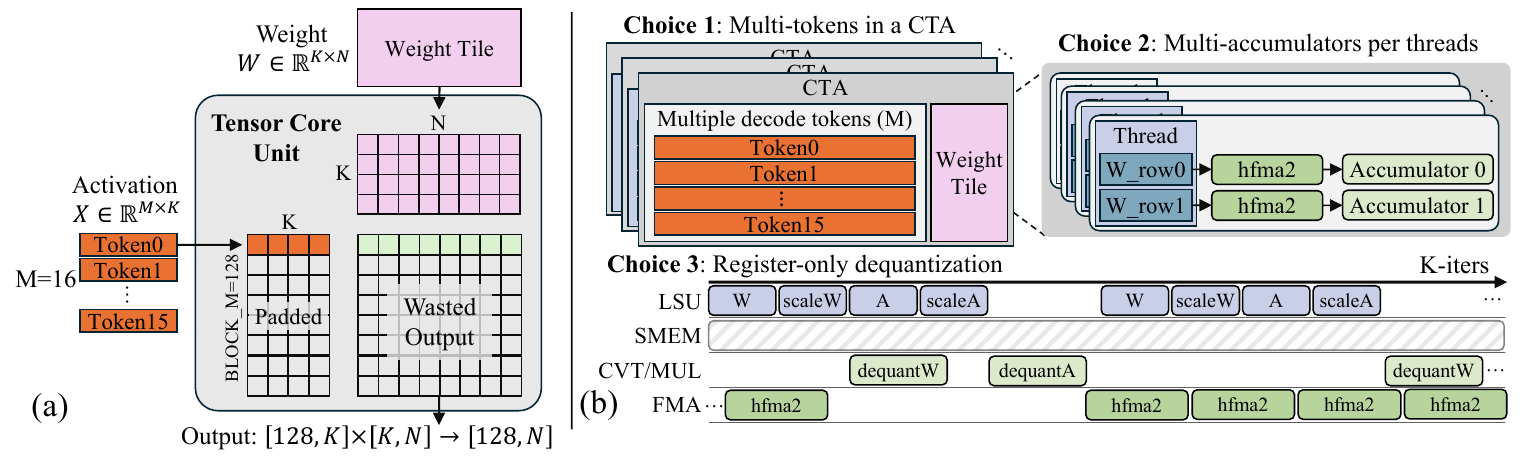

CUDA-core NVFP4 kernel design — (a) Tensor-Core GEMM under-occupancy from the required 128-row M tile. (b) The CUDA-core design choices C1–C3.

ReSET — Reasoning Step Entropy-based Temperature scaling

The kernel restores NVFP4 speed; ReSET restores NVFP4 accuracy — together they make low-precision reasoning deployable, not just fast. ReSET is a drop-in decoding policy with no extra forward passes.

Step-aware temperature scaling

NVFP4 quantization distorts token-level uncertainty in two ways: it causes incorrect sampling at low-entropy symbolic tokens and over-concentration in high-uncertainty reasoning steps. ReSET estimates step-level uncertainty online and adapts the decoding temperature from both token- and step-level entropy — a drop-in vLLM logits processor.

T_t = T_low if H_t < τ_t (τ_t=τ₀, confident step)
T_t = T_high if H_t ≥ τ_t (τ_t=Ê_step, uncertain step)

ReSET method — Step-aware, entropy-gated two-temperature decoding.

Accuracy

ReSET vs. the NVFP4 (RTN) baseline across three reasoning benchmarks and five models (accuracy, ↑).

Task	Method	R1‑Qwen‑7B	R1‑Qwen‑14B	Qwen3‑8B	Qwen3‑14B	Qwen3‑32B	Avg
AIME‑120	NVFP4	39.6	52.4	62.5	70.4	74.4	59.9
AIME‑120	ReSET	43.8	54.0	64.9	72.1	77.5	62.5 (+2.6)
GPQA‑Diamond	NVFP4	47.1	53.7	50.7	57.4	62.8	54.3
GPQA‑Diamond	ReSET	46.0	57.6	53.2	58.5	62.9	55.6 (+1.3)
LiveCodeBench	NVFP4	29.5	37.1	36.4	46.7	46.5	39.2
LiveCodeBench	ReSET	28.4	37.9	42.1	46.1	46.7	40.2 (+1.0)

BF16 reference on AIME‑120: 65.1 avg. ReSET recovers a large fraction of the accuracy lost to NVFP4 with no extra forward passes.

End-to-end decode latency

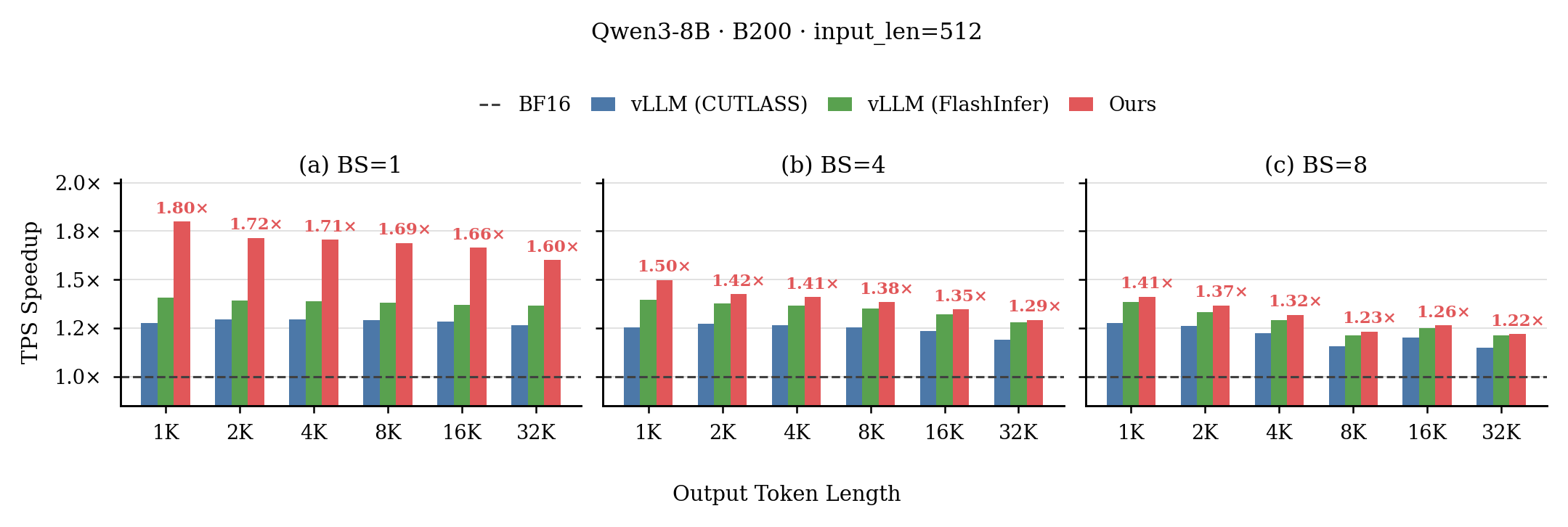

End-to-end Qwen3-8B — Qwen3-8B — end-to-end decode latency.

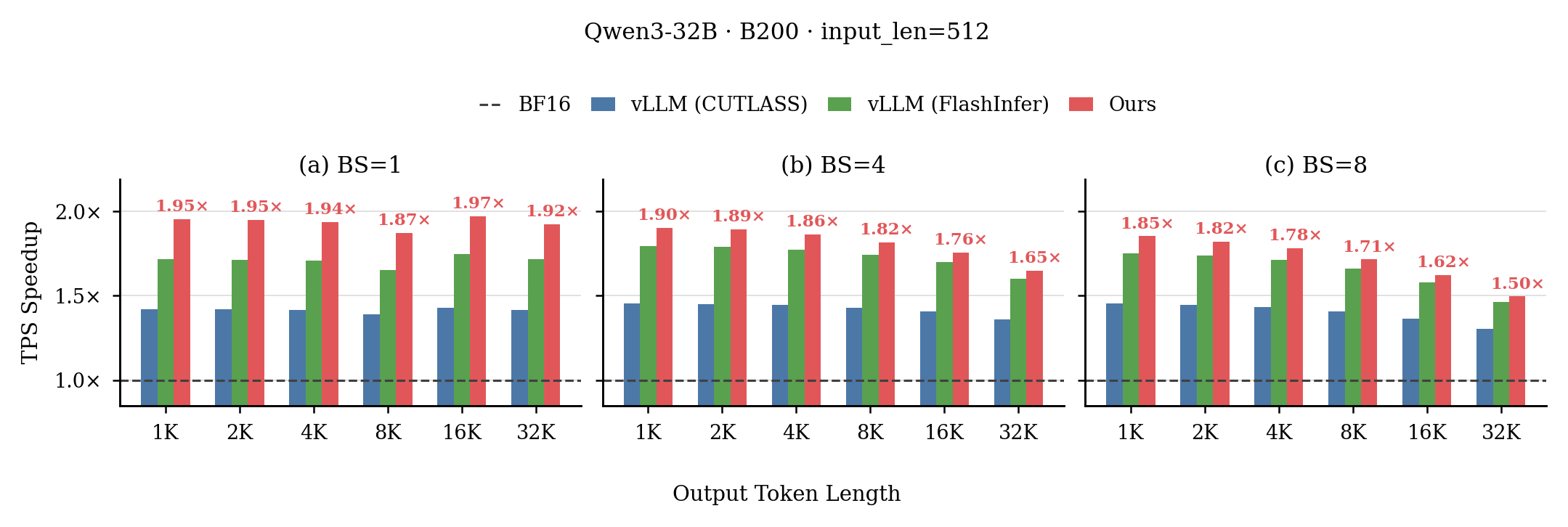

End-to-end Qwen3-32B — Qwen3-32B — end-to-end decode latency.

Kernel-level decode latency (µs) for M=1 GEMV — nvfp4r vs. vLLM-CUTLASS.
Single-token decode (M=1) is the latency-critical regime; baseline is vLLM-CUTLASS — vLLM's state-of-the-art production Tensor-Core NVFP4 kernel on Blackwell — at M=1 on NVIDIA B200 (sm_100a), against vLLM's CUTLASS/FlashInfer NVFP4 backends.

Model	Layer	N	K	nvfp4r	vLLM	Speedup
Qwen3-8B	qkv_proj	6144	4096	4.28	8.69	2.03×
Qwen3-8B	o_proj	4096	4096	3.75	7.69	2.05×
Qwen3-8B	gate/up_proj	12288	4096	6.40	11.45	1.79×
Qwen3-8B	down_proj	4096	12288	6.66	16.61	2.49×
Qwen3-14B	qkv_proj	7168	5120	5.53	10.79	1.95×
Qwen3-14B	o_proj	5120	5120	4.64	9.08	1.96×
Qwen3-14B	gate/up_proj	17408	5120	9.49	14.93	1.57×
Qwen3-14B	down_proj	5120	17408	10.35	23.77	2.30×
Qwen3-32B	qkv_proj	10240	5120	6.62	13.41	2.03×
Qwen3-32B	o_proj	5120	8192	7.73	12.40	1.60×
Qwen3-32B	gate/up_proj	25600	5120	13.25	25.89	1.96×
Qwen3-32B	down_proj	5120	25600	15.00	33.26	2.22×

Per-layer GEMV speedups of 1.57–2.49× over vLLM-CUTLASS at M=1; these compound through the decode-bound layers into the end-to-end speedup above.

BibTeX

@article{lee2026reset,
  title   = {ReSET: Accurate Latency-Critical NVFP4 Reasoning via Step-Aware Temperature Scaling},
  author  = {Lee, Sihwa and Lee, Janghwan and Yoo, Donghoon and Kim, Jae Gon and
             Ryu, Hanyul and Ryu, Soojung and Choi, Jungwook},
  journal = {arXiv preprint arXiv:2606.13233},
  year    = {2026}
}
